- No cost guide prices Bay Area shops on their own. A Houston guide puts industrial-grade systems for chemicals and heavy traffic at $5 to $12 a square foot and showroom floors with metallic or quartz finishes at $6 to $8.
- National guides say commercial floors need a 100% solids coating, starting around $12 a square foot. Thin water-based kits don't belong in a working bay.
- A typical 100% solids epoxy is ready for normal use in about five days at 73°F. Faster-curing topcoats shorten that.
- Phasing the work so the shop stays open adds roughly 10% to 15% in the Houston guide.
What changes the bid
Bay count, lift and pit details, the topcoat, texture in wet areas, and whether an old coating has to come off.
Hayward Epoxy Floors pairs your shop with one independent local floor contractor who coats service bays, wash bays and showrooms. A shop floor takes jacks, creepers, dropped tools and fluids every day, so the system matters more than the color. Most shop systems are a 100% solids epoxy base over a diamond-ground slab with a tougher topcoat on top. Wet areas get broadcast grit, and the showroom gets a gloss finish.
Auto Shop Epoxy Floor Types by Bay
Service Bay Floors
Service bays are where the floor earns its keep. A light gray or tan finish makes dropped bolts easy to spot and bounces light under the car. Most shops pick a solid color or a partial flake, since a busy pattern hides parts as well as stains. Hot tires come in off the road all day, so ask how the topcoat handles them (the garage floor epoxy page explains hot-tire pickup). Cracks in the bay should be filled before the base coat, and the crack repair page explains which ones need more than filler.
Lift and Pit Areas
Lifts change the order of work. One two-post lift manual calls for at least 4-1/4 inches of 3,000 psi concrete under the posts and says not to set the lift over cracks or expansion joints. The coating adds no strength to that slab. Ask whether the lifts will be unbolted for the job, or the crew will coat around the base plates, and who re-torques the anchors afterward. Inspection pits sit below grade, where slab moisture is more likely, so ask for a moisture test there before anyone quotes a coating (concrete grinding covers the test methods).
Detailing and Wash Bays
Wash bays stay wet, soapy and full of grit from the cars. A smooth gloss topcoat is the wrong choice here. Grit broadcast into the final coat gives wet tires and boots traction; the quartz floor page compares grit levels and slip ratings. Check the slope to the drain before coating. A low spot that holds water will hold soap scum too, under any finish.

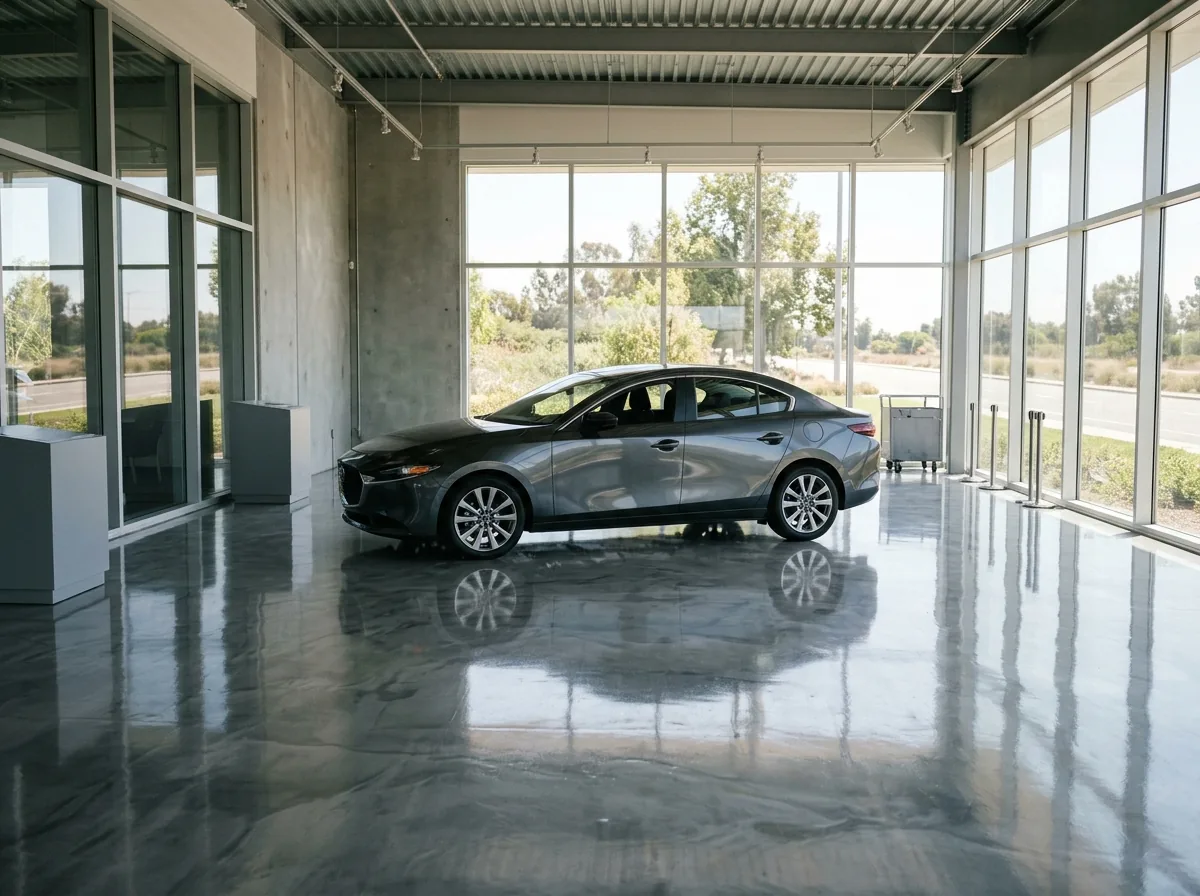

Dealership Showroom Floors
In a showroom the floor is part of the display. Metallic, high-gloss flake and quartz finishes are the usual picks, and the Houston guide prices showroom work at about $6 to $8 a square foot. Gloss shows every scratch from a floor jack or a dragged display stand, so one option is high-gloss metallic in the display area and a busier flake in the service drive. The metallic epoxy page covers how metallic finishes wear.
Parts Rooms and Tire Storage
Parts rooms get rolling carts, pallet jacks and shelving feet rather than cars. A plain solid-color coat can be enough here, which leaves more of the budget for the bays. If the room needs aisle lines or clear zones in front of electrical panels, ask for them in the same visit instead of a return trip.
Why Hayward homeowners call Hayward Epoxy Floors
- No fee to you for the referral
- Your request goes to one local installer, not a list
- Ask for a written scope: system, coats and cure time
- Free estimate after the slab is looked at
Scheduling a Shop Floor Without Losing a Week
Most shops can't close for a week. Ask each bidder for a bay-by-bay schedule: which bays go down first, how many days each one stays closed, and when cars and lifts can go back in. Work in phases costs more, but two open bays usually beat a closed shop.
Prep is usually the biggest variable. Decades of motor oil soak into bare concrete, and an old floor paint will lift any new coating that goes over it. A good bid names the prep method (diamond grinding rather than acid etching), says how oil-soaked spots will be cleaned or cut out, and states whether old coatings come off first. If the floor already peels, read epoxy floor repair before you collect quotes.
